The Science of Bipolar Ionization: Does the Controversial HVAC Tech Deliver HEPA-Level Air Quality, or Just Ozone?

The post-2020 boom in indoor air quality awareness left homeowners and facility managers with a difficult physics problem. We now know that indoor air is often significantly more polluted than outdoor air, laden with volatile organic compounds (VOCs), dust, dander, and airborne pathogens. But the traditional solutions come with a massive energy penalty.[6]

Upgrading a building to hospital-grade HEPA filtration requires pushing air through incredibly dense filter media. That resistance causes a "pressure drop," forcing HVAC blower motors to work exponentially harder and consume far more electricity. Alternatively, bringing in massive amounts of fresh outdoor air requires heating or cooling that air to room temperature—an expensive proposition in the dead of winter or the peak of summer.[2][6]

Enter bipolar ionization (BPI), and its modern variant, needlepoint bipolar ionization (NPBI). Marketed as a frictionless, low-energy alternative, the technology promises to actively scrub the air of pollutants without the severe pressure drop of a HEPA filter or the thermal penalty of high outdoor air ventilation.[6]

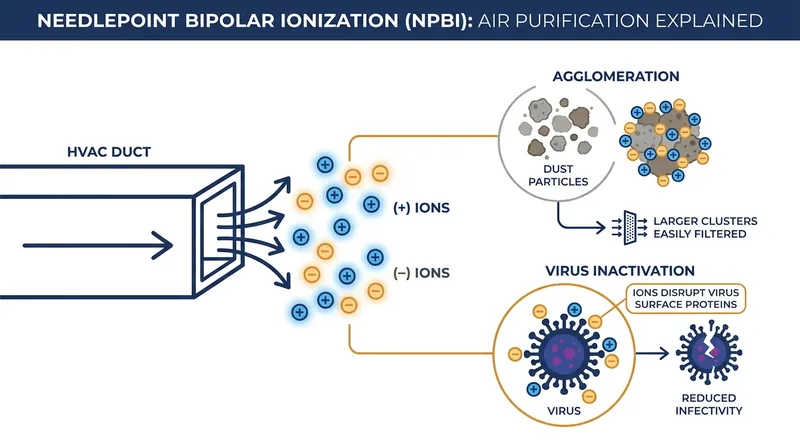

The mechanism relies on established electrical principles. A small device is installed directly into the supply plenum or main trunk line of an existing HVAC system. As air flows past the unit, it uses an electrical charge to split passing molecules into billions of positively and negatively charged ions, which are then blown into the occupied space.[3][6]

Once in the room, these ions act as microscopic magnets. Through a process called agglomeration, the ions attach to fine particulate matter like dust, smoke, and dander. As positive and negative charges attract, these tiny particles cluster together into larger "snowballs." These larger, heavier clusters are then easily caught by standard, low-resistance mechanical filters when the air circulates back through the return vents.[3][6]

The technology's most heavily marketed feature, however, is pathogen disruption. Manufacturers claim that the ions interact directly with the surface proteins of viruses and bacteria. By pulling essential hydrogen atoms away from the pathogens, the ions theoretically rupture the cell walls or alter the protein structures, rendering the microorganisms inactive and unable to infect human cells.[3][4]

Furthermore, the ions are designed to break down complex chemical odors and volatile organic compounds (VOCs)—the gasses emitted by paints, cleaning supplies, and new furniture. The high-energy ions fracture these complex molecules, theoretically reducing them to simpler, harmless compounds like oxygen, carbon dioxide, and water vapor.[3][6]

During the height of the pandemic, the laboratory results were staggering. Independent testing chambers funded by manufacturers frequently reported up to a 99.4% reduction of viruses like SARS-CoV-2 within 30 minutes. Armed with these numbers, school districts, corporate offices, and homeowners spent millions installing the devices, often reporting that their buildings immediately "smelled fresher."[4]

But as the technology transitioned from an emergency pandemic measure to a permanent fixture of modern HVAC design, a fierce debate emerged. Indoor air quality researchers and mechanical engineers began to point out a glaring discrepancy: laboratory conditions rarely reflect real-world physics.[5][6]

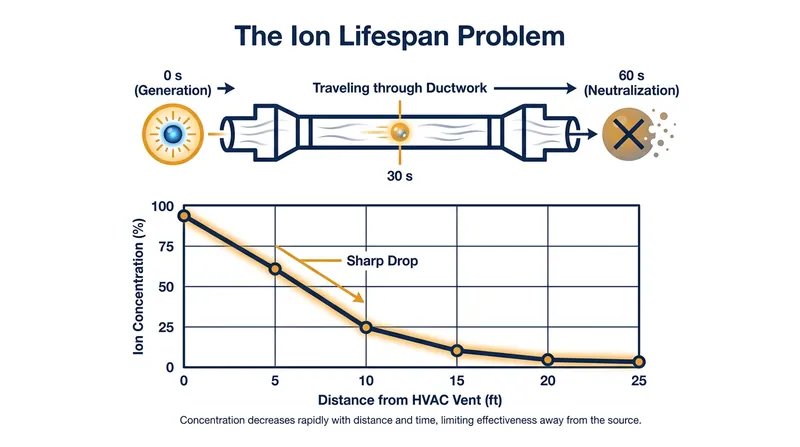

The primary issue is the "shoebox problem." A 99% kill rate achieved in a small, sealed stainless-steel test chamber does not easily translate to a 2,000-square-foot open-plan office or a residential living room. Ions have an incredibly short lifespan—often neutralizing or grounding out against ductwork within 60 seconds of being generated.[6]

By the time the ionized air travels through complex, winding ductwork and diffuses across a large room, the actual ion concentration in the human breathing zone often drops precipitously. Critics argue that in real-world applications, the ions simply do not exist in high enough densities to achieve the rapid pathogen neutralization seen in lab reports.[5][6]

Then there is the ozone problem. Older generations of electronic air cleaners and ionizers were notorious for producing ozone (O3) as a byproduct. While ozone in the upper atmosphere protects the Earth from UV radiation, ozone in the lower atmosphere is a toxic lung irritant that exacerbates asthma and damages respiratory tissue.[1][2]

Modern NPBI manufacturers are adamant that their devices are "ozone-free." To settle the debate, the U.S. Environmental Protection Agency (EPA) and the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) established a hardline stance: consumers should only install devices that carry a UL 2998 certification, a rigorous third-party standard that guarantees the unit emits zero ozone (defined as less than 0.005 parts per million).[1][2]

Even with ozone eliminated, researchers warn of a secondary byproduct risk. If the energy field of the ionizer is not perfectly calibrated, the process of breaking down complex VOCs can result in incomplete chemical reactions. Instead of reducing a chemical to water and oxygen, an improperly tuned system might inadvertently fracture it into a different, sometimes more harmful secondary pollutant, such as formaldehyde.[1][3]

The controversy reached a boiling point over ventilation standards. Because bipolar ionization reduces odors and agglomerates particles, some manufacturers began marketing the technology as a way to legally reduce the amount of outside air a building is required to bring in, offering massive savings on heating and cooling bills.[6]

ASHRAE firmly pushed back on this practice. In their governing Standard 62.1, the organization clarified that electronic air cleaners, including bipolar ionization, cannot be used as a substitute for compliant outdoor air ventilation rates. Fresh air, they mandated, remains non-negotiable.[2]

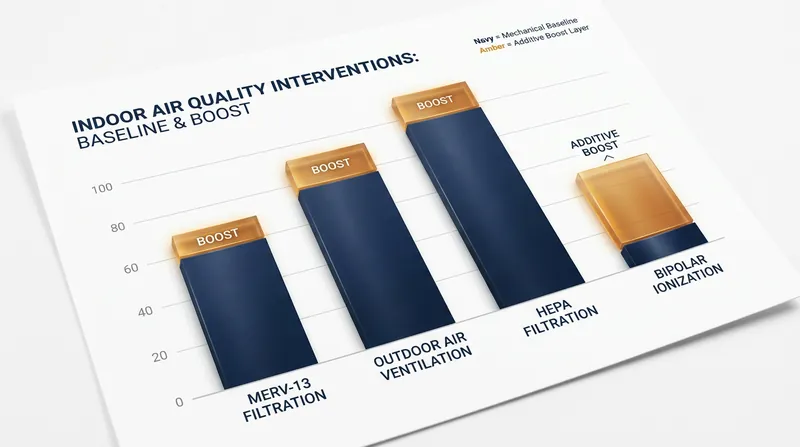

Today, both the EPA and independent researchers classify bipolar ionization as an "emerging technology." It is no longer viewed as a standalone magic bullet that can instantly sterilize a room, but rather as an active, additive layer in a broader air quality strategy.[1][5]

When properly sized, UL 2998 certified, and paired with proven mechanical filtration like MERV-13 filters, bipolar ionization offers a measurable boost to indoor air quality—particularly for odor reduction and helping standard filters catch finer dust. For homeowners and facility managers, the consensus is clear: ionization can enhance a good HVAC system, but it cannot fix a bad one.[3][6]
