3D 'NanoStack' Chip Architecture Breaks Sub-1nm Barrier, Extending Moore's Law With 70% Energy Gain

For decades, the semiconductor industry has been racing toward a physical wall: the point at which transistors become so small that physics itself stops cooperating. On Thursday, IBM presented evidence that it has found a way around that barrier, unveiling what it claims is the world's first sub-1-nanometer chip technology.[1][3]

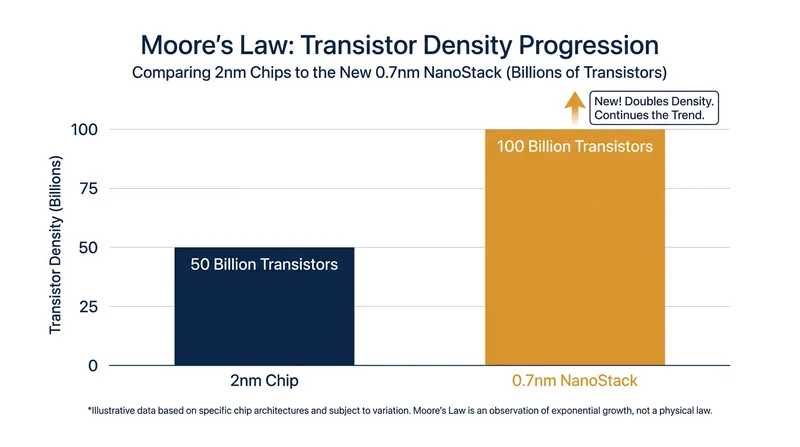

The primary claim advanced by IBM's research division is that their new architecture, operating at the 0.7-nanometer or 7-angstrom node, can pack nearly 100 billion transistors onto a piece of silicon roughly the size of a human fingernail. This represents a doubling of the transistor density achieved by the company's 2-nanometer test chip introduced in 2021.[1][3][4][5]

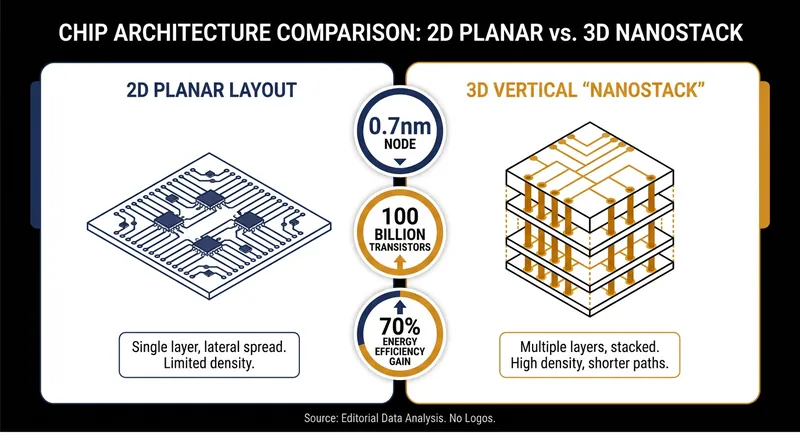

The evidence for this density leap rests on a fundamental shift in how microprocessors are constructed. Rather than continuing to shrink transistors across a flat, two-dimensional plane, IBM has developed a three-dimensional transistor architecture it calls "NanoStack."[1][2]

According to technical results published by the company, NanoStack utilizes 3D sequential integration to vertically stack and stagger transistors. This "skyscraper" approach allows engineers to build upward, bypassing the atomic limits that restrict horizontal scaling and allowing for unprecedented component density.[1][3][6][7]

The core mechanism enabling this verticality is a breakthrough in ultra-thin dielectric bonding. Historically, the primary barrier to 3D chip stacking has been heat; the extreme temperatures required to bake a second layer of silicon typically destroy the delicate circuitry of the first layer.[1][2][6]

Independent research from institutions like the University of Illinois has recently demonstrated that low-temperature silicon stacking is viable, allowing high-performance transistors to be sequentially layered without thermal damage. IBM's proprietary bonding technique applies a similar principle, validating the NanoStack design through functional CMOS inverter operation.[1][2][6]

The second major claim centers on dramatic efficiency gains. IBM's data projects that the NanoStack architecture will deliver either a 50 percent increase in computational performance or a 70 percent reduction in energy consumption compared to its 2-nanometer predecessor.[3][8]

The evidence supporting this efficiency comes from the architecture's ability to use different material combinations within each stacked layer. Because the front and back sides of each transistor can be contacted independently for signal and power, engineers can optimize the performance and power draw of each tier independently.[1][2]

This energy reduction is particularly critical for the artificial intelligence sector. Generative AI models require massive computational resources, turning data center power consumption into a global infrastructure bottleneck. A chip that can perform the same calculations while drawing 70 percent less power offers a tangible solution to the grid strain caused by AI expansion.[3][5]

Furthermore, the NanoStack design demonstrated a 40 percent scaling improvement in Static Random-Access Memory (SRAM). SRAM is the high-speed memory located directly on the processor; improving its density directly alleviates the memory bandwidth constraints that currently throttle advanced AI workloads.[1][2][5]

Despite the strength of the laboratory evidence, the timeline for commercial mass production carries significant uncertainty. IBM has stated that the NanoStack technology is intended to replace current nanosheet designs as the mainstream architecture, with a path to production in as early as five years.[2][4]

However, industry observers and manufacturing skeptics point to the historical gap between research prototypes and commercial viability. While IBM unveiled its 2-nanometer test chip in 2021 with a target of late 2024 for production, mass manufacturing at that node has faced delays across the industry.[5]

Major foundries like TSMC, Samsung, and Intel are currently still battling to stabilize and commercialize their 2-nanometer and 3-nanometer processes. Consequently, analysts suggest that the 0.7-nanometer announcement serves more as a long-term blueprint for the semiconductor roadmap than an imminent product release.[4][5]

To bridge this manufacturing gap, IBM is relying on its history of transferring intellectual property to commercial foundries. The company is currently working with the Japanese foundry startup Rapidus to initiate 2-nanometer production, though it remains undecided whether the NanoStack technology will be transferred to Rapidus or another partner like Samsung.[2][4]

The financial markets have responded positively to the evidence presented, with IBM shares jumping over 6 percent following the announcement. Investors view the sub-1-nanometer breakthrough as a critical competitive advantage that bolsters IBM's position as a foundational research leader in the IT services industry.[8]

Alongside the NanoStack revelation, IBM also signaled its broader hardware ambitions by announcing plans to establish "Anderon," which it describes as the world's first dedicated quantum foundry.[8]

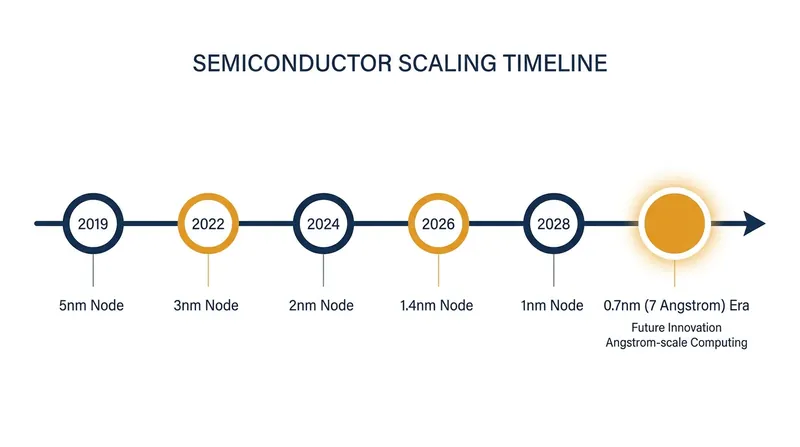

Ultimately, the evidence pack surrounding the NanoStack architecture confirms that the physical limits of silicon have not yet been reached. By transitioning from the nanometer era to the angstrom era, engineers have secured at least another decade of viability for Moore's Law.[2][3][4][7]

While the exact date of commercial deployment remains subject to the friction of mass manufacturing, the successful laboratory validation of 3D sequential integration proves that the future of computing lies not in shrinking outward, but in building upward.[6][7]
